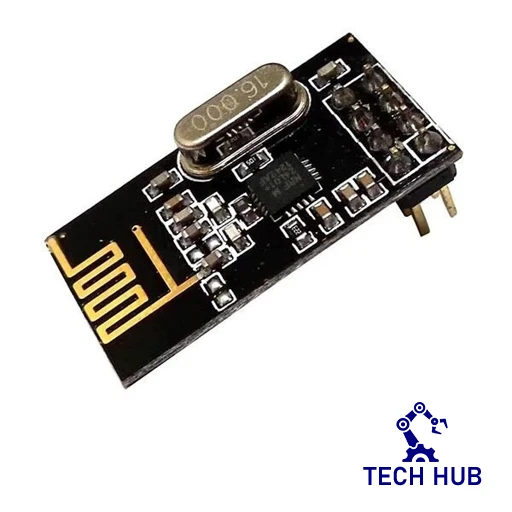

NRF24L01 2.4GHz Wireless Transceiver
75.00 EGP
2.4GHz ISM band transceiver, ultra-low-power wireless applications. Features 2Mbps speed and Enhanced ShockBurst.
| Weight | 0.02 kg |
|---|---|
| Dimensions | 2.9 × 1.5 × 2 cm |
1 in stock
NRF24L01+ Wireless Module
This wireless transceiver module is based on the Nordic Semiconductor nRF24L01+ single-chip 2.4GHz transceiver. It is designed for ultra-low-power (ULP) wireless applications operating in the worldwide 2.4GHz ISM frequency band. As a module featuring a Power Amplifier (PA), Low-Noise Amplifier (LNA), it is engineered for long-range communication.
Features
- Operating Band: Worldwide 2.4GHz ISM band operation.
- Data Rates: 250kbps, 1Mbps, and 2Mbps.
- Ultra-Low Power: Designed for ULP operation with 900nA power-down and 26µA standby-I modes.
- Enhanced ShockBurst: On-chip baseband protocol engine provides automatic packet handling, automatic packet transaction handling, and auto-acknowledgment.
- MultiCeiver: Features 6 parallel data pipes for 1:6 star network configurations.
- Low-Cost BOM: Requires only a low-cost ±60ppm 16MHz crystal.
- Dimensions: 48×15.5x14mm
- Antenna length: 108mm
Specifications
| Specification | Details |
|---|---|
| Frequency Band | 2.400 – 2.4835GHz |
| RF Channels | 126 RF channels |
| Modulation | GFSK |
| Air Data Rates | 250kbps, 1Mbps, 2Mbps |
| Supply Voltage | 1.9 to 3.6V |
| Power Consumption (Core Chip) |
|
| Receiver Sensitivity (Core Chip) |
|
| Payload Length | 1 to 32 bytes, dynamic |
| FIFO | 3 separate 32-byte TX and RX FIFOs |
Pinout
Applications
- Wireless Data Transmission
- Remote Control Systems
- Wireless Networking
Package Content
- 1x NRF24L01 Wireless Module
