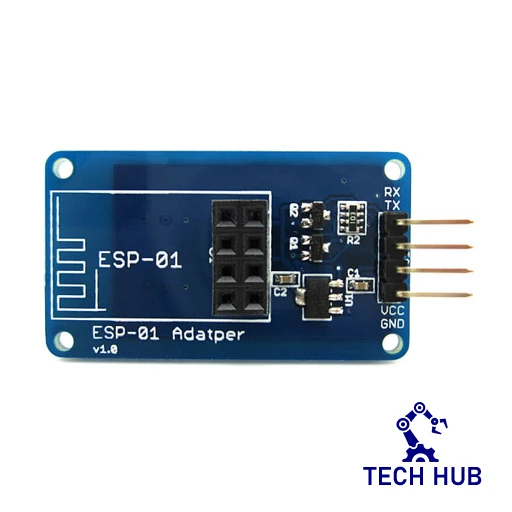

WIFI Serial Module ESP-01 Adapter Board (3.3V 5V)
Original price was: 90.00 EGP.75.00 EGPCurrent price is: 75.00 EGP.
The use of an ESP8266 with Arduino requires logic level translation of the UART signal, as provided by this easy 3.3 V – 5 V adapter. It makes the ESP-01 ESP8266 WiFi module the easiest WiFi transceiver for your Arduino (5 V).
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.5 × 1.5 × 0.5 cm |
3 in stock
WIFI Serial Module ESP-01 Adapter Board (3.3V 5V)
Don’t send 5 V signals to your ESP8266. The use of an ESP8266 with Arduino requires logic level translation of the UART signal, as provided by this easy 3.3 V – 5 V adapter. It makes the ESP-01 ESP8266 WiFi module the easiest WiFi transceiver for your Arduino (5 V).
- Adapter module for ESP-01 Wi-Fi module
- 3.3 V voltage regulator circuit & onboard level conversion for easy use of 5 V microcontroller with ESP-01 Wi-Fi module
- Compatible with UNO R3
- 4.5 – 5.5 V (on-board 3.3 V LDO Regulator)
- Interface logic voltage: 3.3 V / 5 V compatible (on-board level shift)
- Current: 0 – 240 mA
Package Includes:
- 1x WIFI Serial Module ESP-01 Adapter Board (3.3V 5V)
