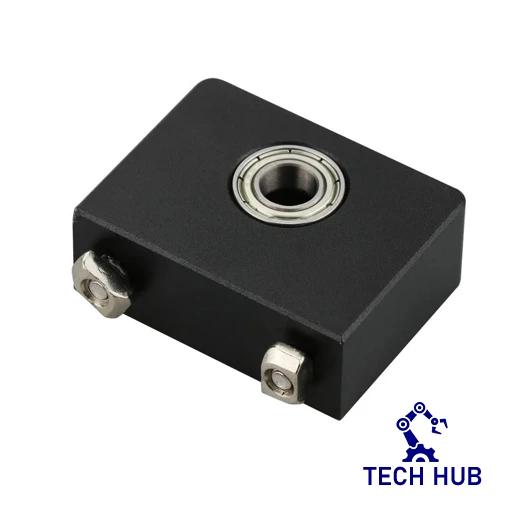

T8 Lead Screw End Support

T8 Lead Screw End Support

This end support for T8 Lead Screw is fabricated from solid aluminum alloy for reliable and precision linear application. Used together with Nema17 stepper motor and 2020/2040 type of aluminum profile for modular construction of linear motion application such as 3D printer, CNC and robotics.

Specification:

• Bearings Diameter: Ø8mm.
• Base to Ball Bearing Distance: 21mm.
• Construction: Precision CNC.
• Material: Aluminum Alloy.
• Color: Black
• Finish: Anodized
• Dimensions:
  • Length: 45mm
  • Width: 34mm
  • Hight: 17mm
• Weight: 70g.
• Compatible With 2020/2040 Profile

Package Includes:

• 1x End Support
