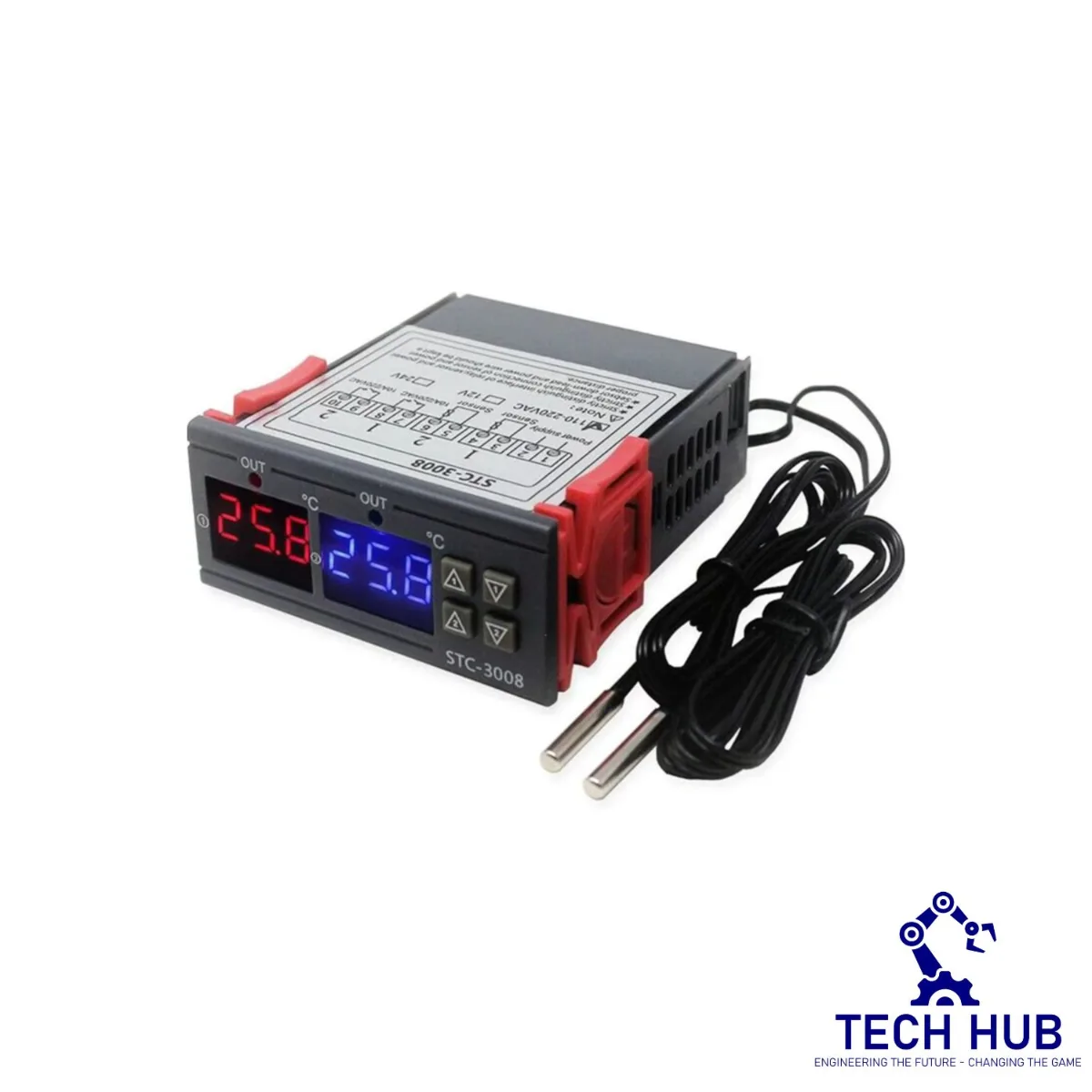

STC-3008 Programmable temperature controller 220vac

STC-3008 Programmable temperture controller 220vac

Thermostat technical details:

• Operating voltage:
  • 110…220VAC
• Operating principle:
  • 2x individual thermostats separated from each other
  • Both have a configurable temperature for starting the relay output and where it shuts it off (configurable for heating or cooling)
• Thermostat outputs:
  • 2x NO relay outputs 250VAC / 10A (1x per thermostat)
• Measurement range:
  • -55…+120°C
• Resolution:
  • 0,1°C
• Accuracy:
  • +/-1°C
• Temperature sensor:
  • 2x NTC thermistor with 1m lead (~10,5kΩ @ 21°C)
• Tight installation hole:
  • 70×28,6mm
• Max panel thickness:
  • 16mm
• Front bezel dimensions::
  • 75,3×34,5×3,8mm


    Package Includes:

    • 1 x STC-3018 220VAC Dual Display Dual Temperature Adjustable Temperature Controller
