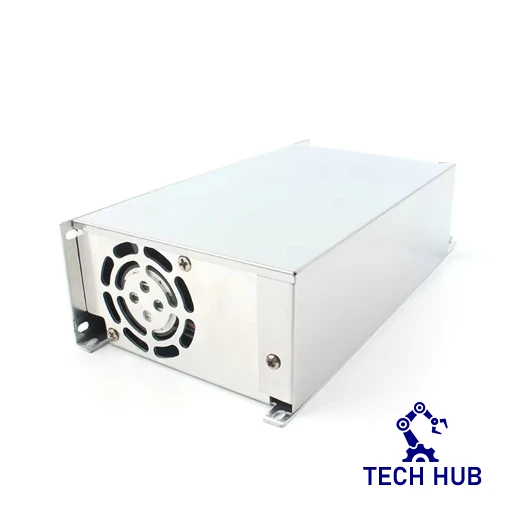

Power Supply SMPS 480W 24V / 20A HQ

Power Supply SMPS 480W 24V / 20A HQ

This is a high-quality switch mode power supply (SMPS) that converts AC to DC 24V with up to 480W output power. It?s highly efficient and widely used as a power adapter, power supply for led light strips, LED display, billboard, industrial equipment, etc.

Specifications:

AC input voltage range(V): AC 110V/220V?15% (switch replacement)

Frequency (Hz): 50/60Hz

Efficiency: 87% Typ (230VAC Full Load)

Leakage current(mA): <3.5mA/240VAC Output Voltage(V): +24VDC Output Current(A): 20A Current Range (A): 0-20A Rated Power(W) : 480W Start time, hold-up time(ms): Ton?200ms,Td?30ms @230Vac Full Load Rise time(ms): Typ:100ms @230Vac Full Load Ripple/Noise(mVp-p): 150mVp-p Over voltage Protection: >115%-135% Rated output voltage

Over load Protection: >105%-150% Aut

Package Includes:

1x SMPS Power Supply
