Micro Limit Switch MS.2 20x10x6mm

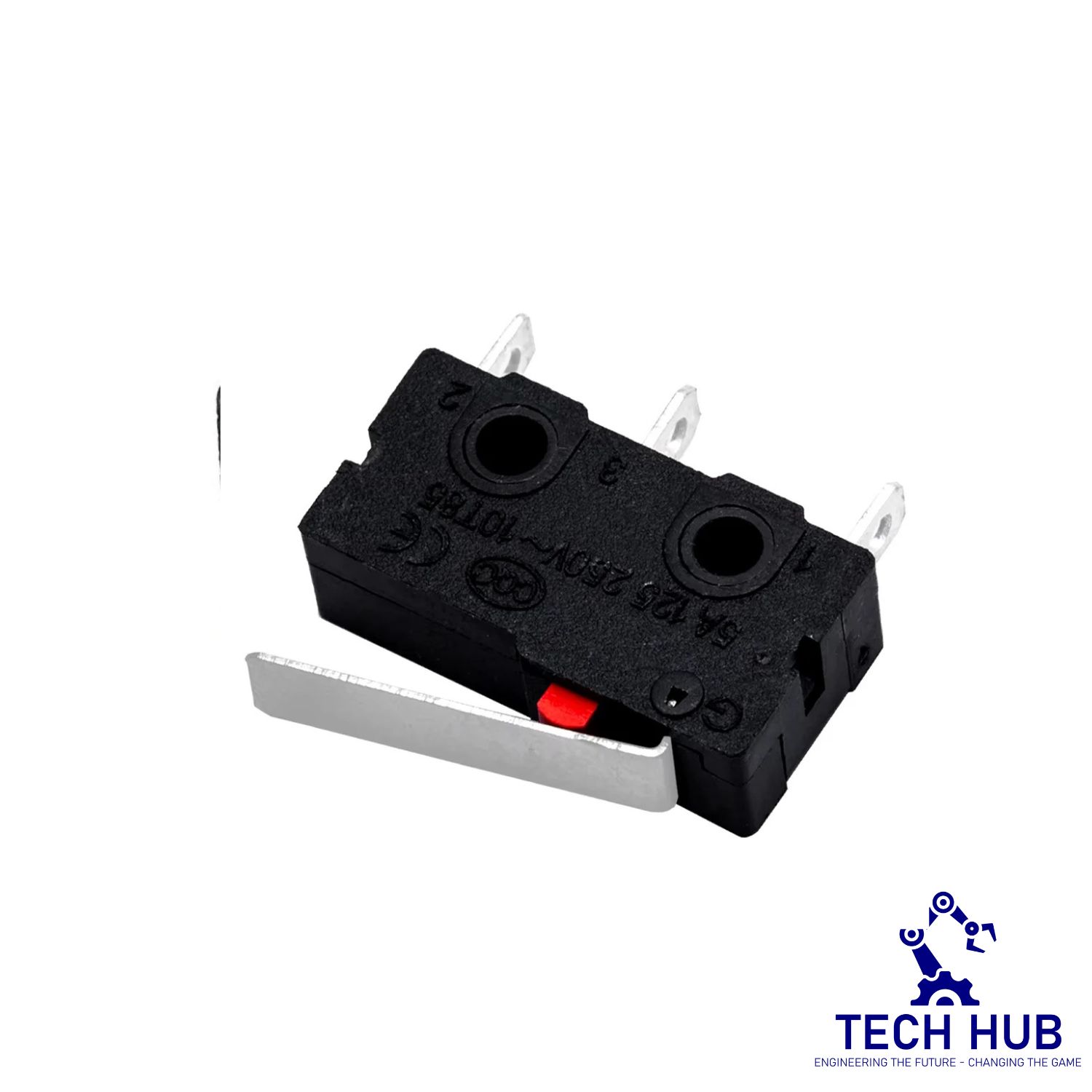

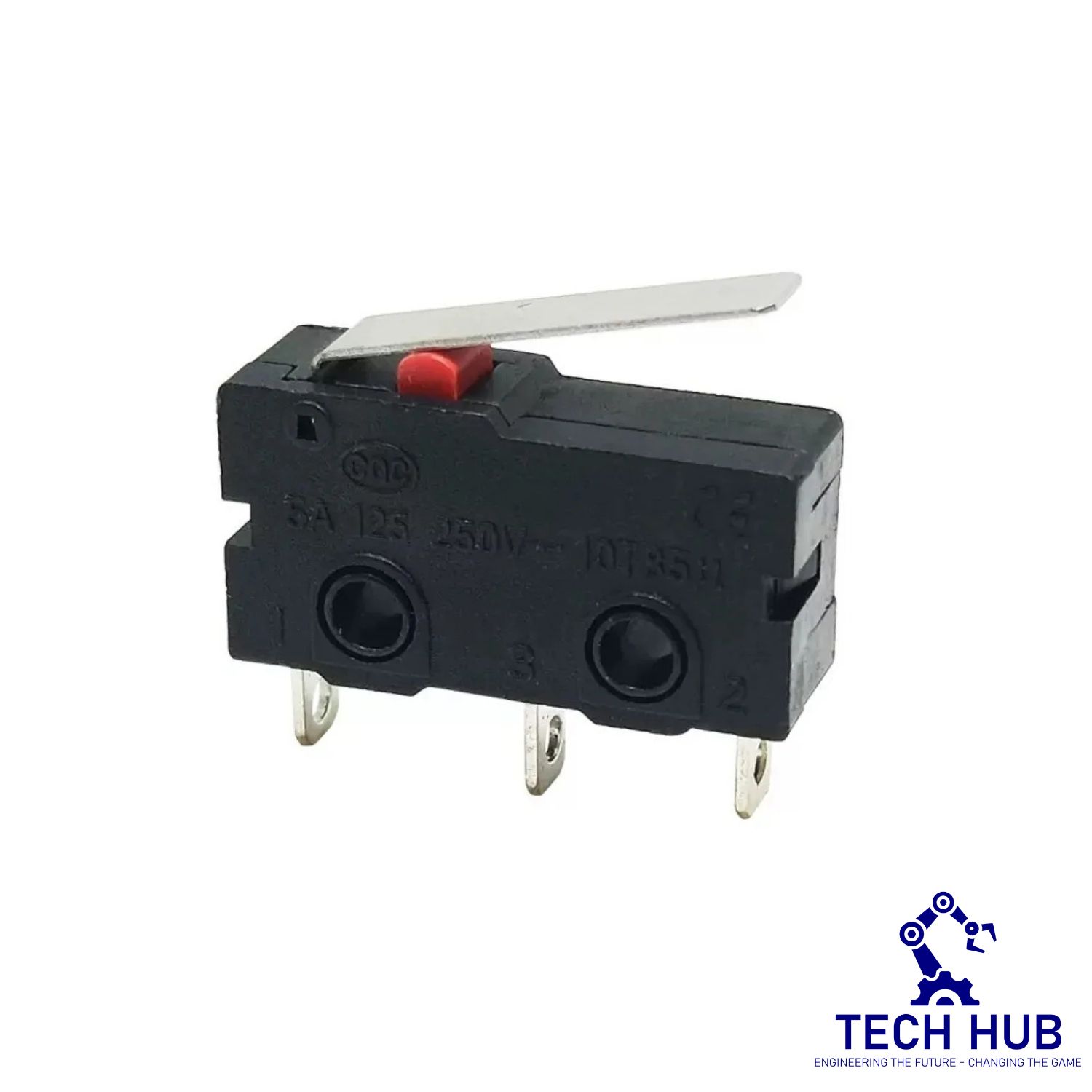

Micro Limit Switch (MS.2 – 20.0×10.0×6.0mm)

• Operating temperature: -40C to 70C
• Rated voltage: AC 125V-250V
• Per weight: 2g
• Current rating: 5A
• Size: 20 x 10 x 6mm (L X W X H)
• PCB Terminals Circuit Board
• With Lever Limit

Working principle:

External mechanical force transmission elements (pins, buttons, levers, rollers, etc.) will be used to actuate a reed, producing reed instantaneous action when the action is shifted to the critical point, so the moving contact with the fixed contact spring at the end of the action point turns on or off quickly.
When the force is removed from the drive components, the action reed produces reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.
Feature: contact spacing is small, short stroke action, according to the power of small, fast-break

Application:

Apply in A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, etc.

Package includes:

• 1x Micro Limit switch
