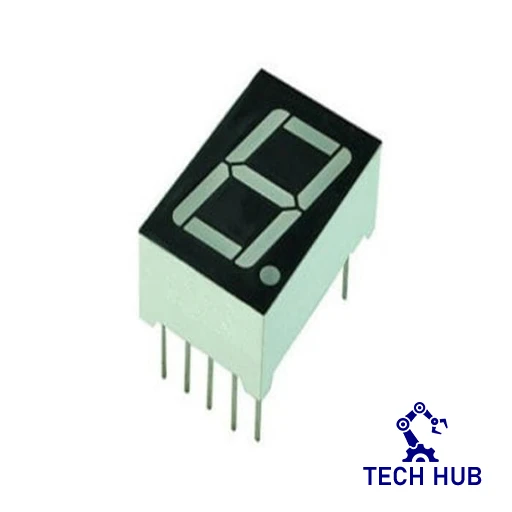

7 Segment Display 0.5 Inch (Common Anode)
10.00 EGP
5011BS 7-Segment 0.56 inch Common Anode Red Display is a compact and efficient electronic component designed for displaying numerical information.
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.9 × 1.3 × 0.8 cm |
644 in stock
7 Segment 0.5″ Common Anode
The 7-Segment 0.56 inch Common Anode Red Display is a compact and efficient electronic component designed for displaying numerical information. It features seven individually controllable LED segments arranged to form digits from 0 to 9, along with a decimal point for enhanced functionality. The common anode configuration simplifies the driving circuitry by connecting all anodes together, allowing segments to be activated by grounding their respective cathodes through current-limiting resistors. This display is widely used in applications requiring clear and reliable numerical readouts.
Features :
- Digit Height: 0.56 inches (14.2 mm)
- Configuration: Common Anode
- Color: Red
- Decimal Point: Included
- Easy to Interface: Compatible with microcontrollers and digital circuits
- High Brightness: Suitable for both indoor and outdoor applications
Specifications :
| Parameter | Value |
|---|---|
| Operating Voltage | 1.8V to 2.2V per segment (forward voltage) |
| Current per Segment | Up to 30mA |
| Wavelength | Approximately 640 nm (red) |
| Viewing Angle | Wide viewing angle for better visibility |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +85°C |
| Pin Count | 10 pins |
| Dimensions | Approximately 19.0 mm x 12.6 mm x 8.0 mm |
